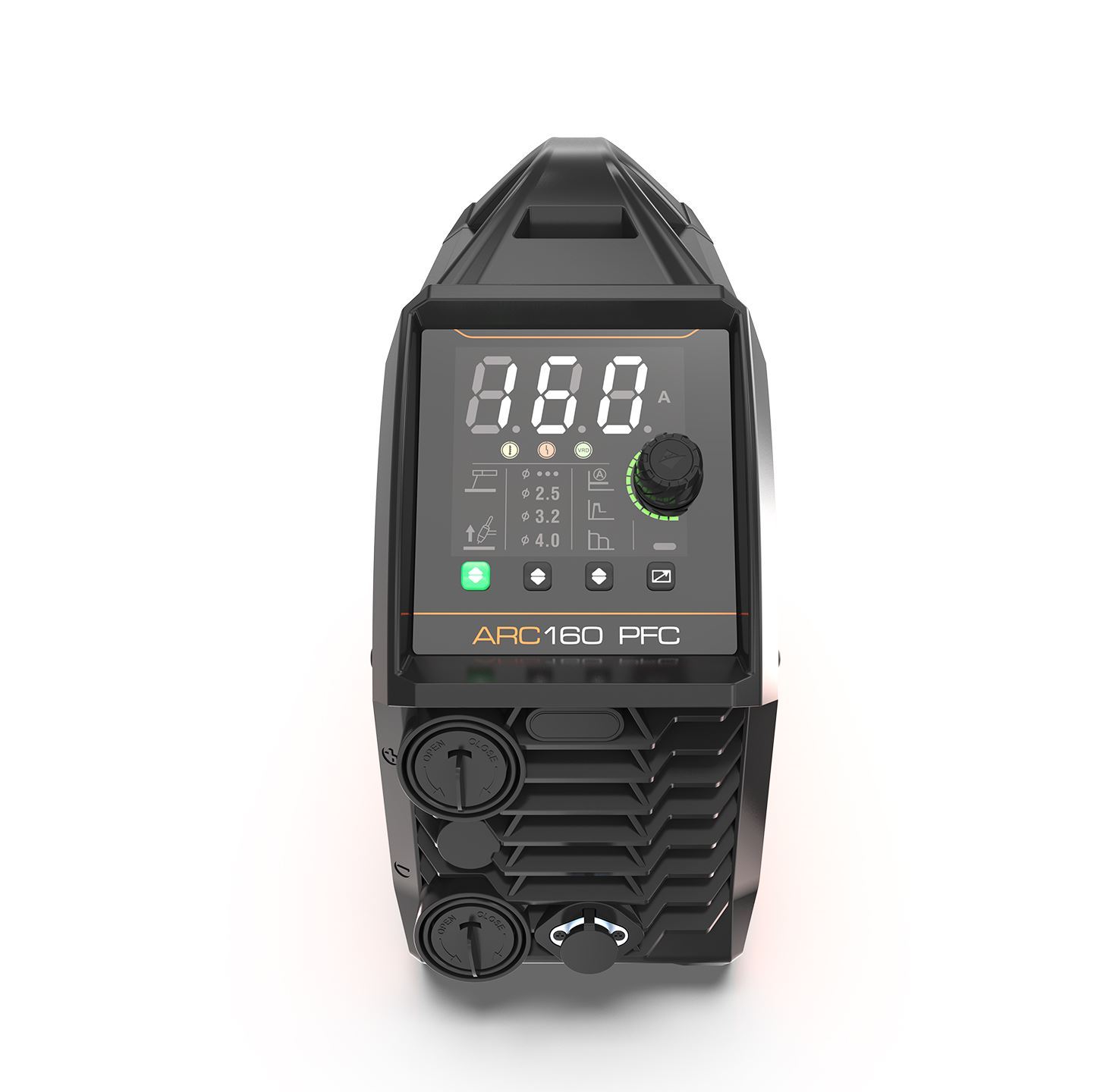

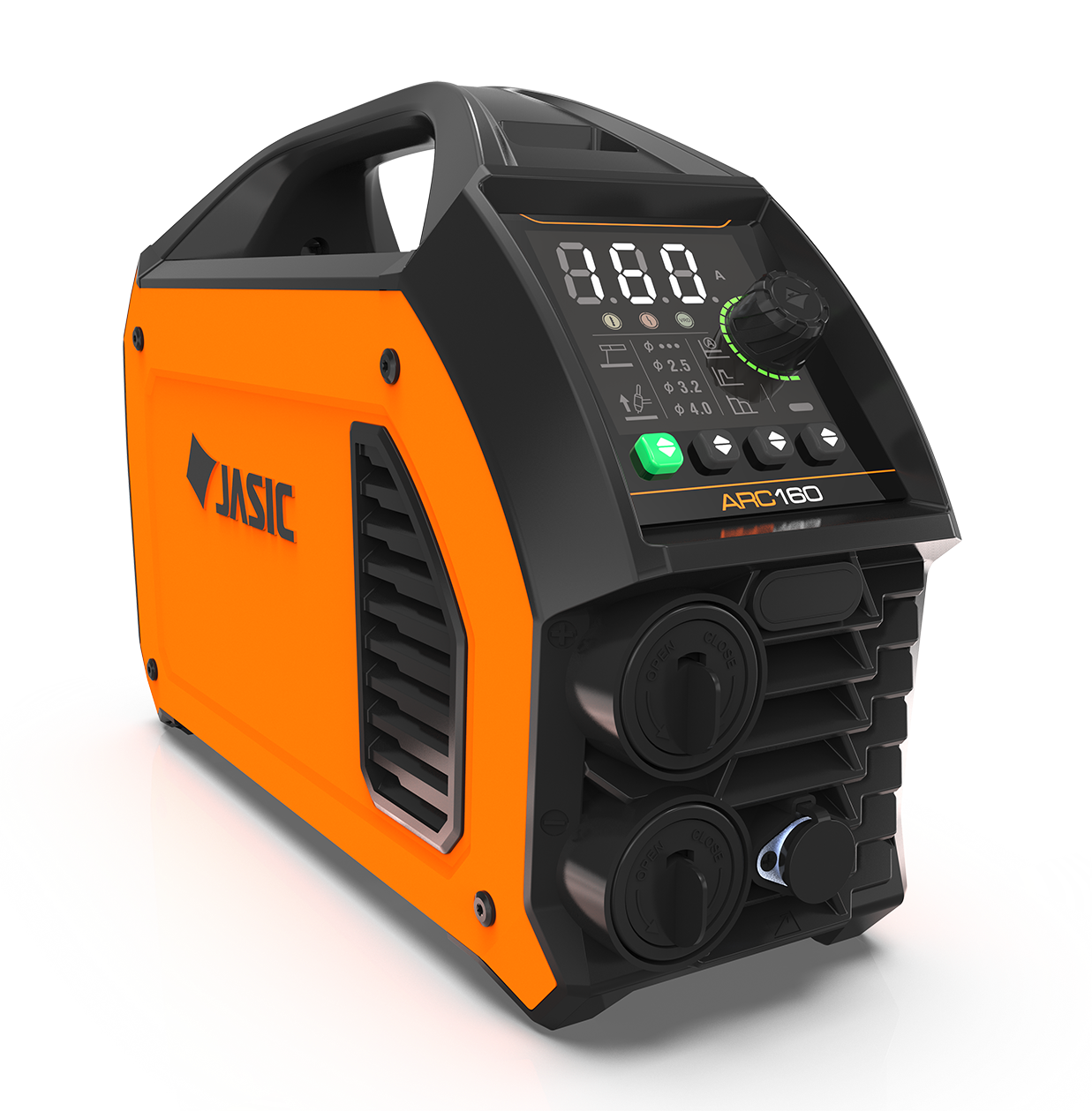

Jasic EVO Arc 160 PFC Inverter Welder: Advanced welding technology, ergonomic design, and versatile features for enhanced welding performance.
Key Features
• Rugged, ergonomic design
• ClearVision technology
• Intelligent synergic control
• Smart Lift TIG
• Adaptable wide voltage range
• Quick factory reset
• Anti-stick, adjustable hot start and arc force
• Dedicated wireless remote control (optional)
• Remote control receiver module (optional)
• Power factor correction (PFC), generator friendly
• ABAP: Active Balancing Air Passage
• Fan on demand
• Voltage Reduction Device (VRD)
• Key power electronic component protection
• Overcurrent and overheat protection
• Complete with protective case and MMA leads
Package Includes
Protective Carry Case & MMA 3 Mtr Leads
Specification:
| Input Voltage | AC95-265V, 50/60 Hz, AC 115V / AC 230V |
| No load voltage | 78V |
| Efficiency (%) | 86 |
| Power Factor | 0.99 |
| Idle state power | MMA: 38.2W TIG: 7W |
| Protection/Insulation Class | IP23S |
| Insulation class | H |
| Dimensions (LxWxH mm) | 413 x 150 x 311mm |
| Weight (Kg) | 7.2Kg |
| Recommended generator size | 5kVA / 7.5kVA |
