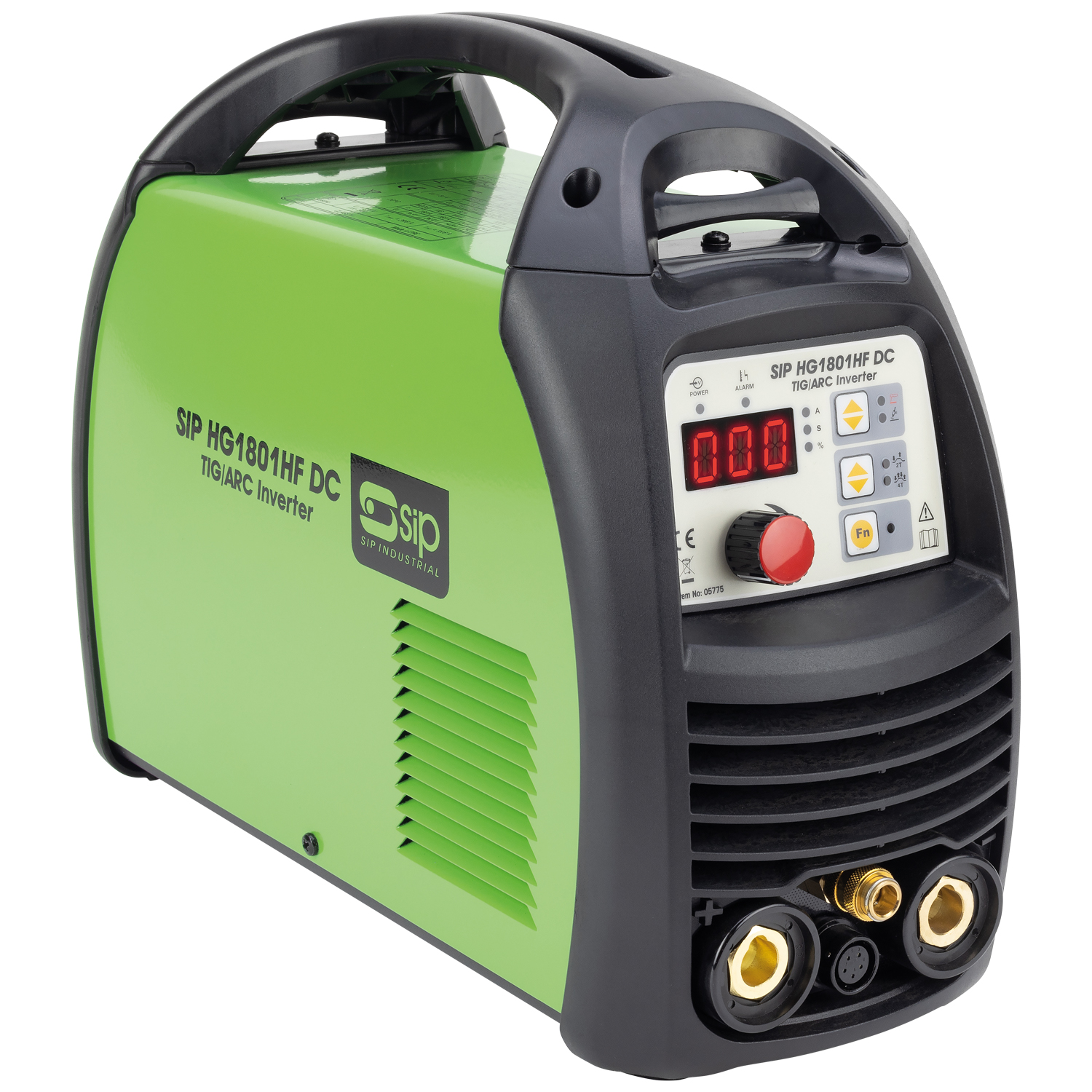

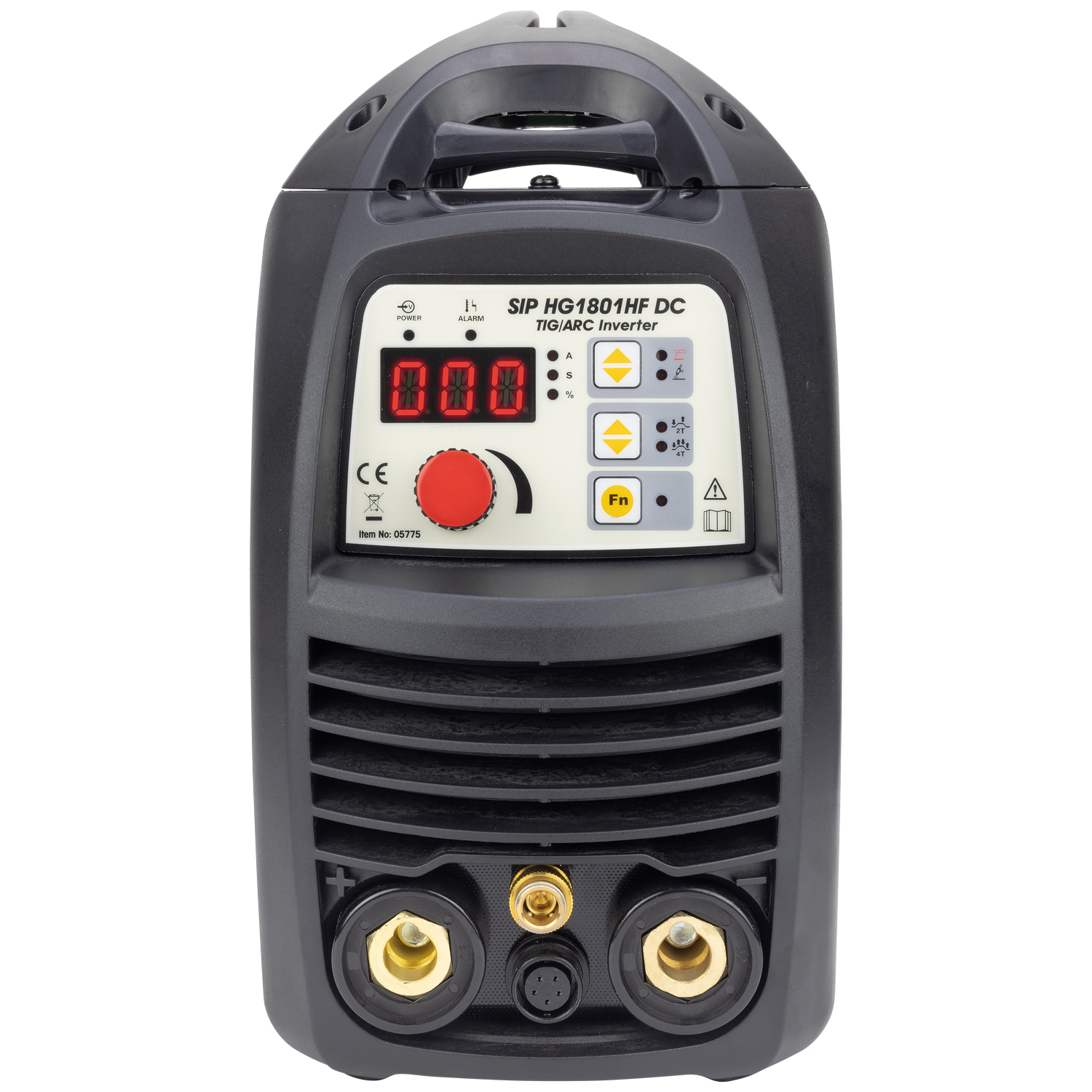

The SIP HG1801HF DC TIG/ARC Inverter Welder is a professional-grade dual-purpose inverter designed to deliver high performance in HF TIG, Lift ARC/TIG and MMA/ARC welding applications utilising the latest IGBT inverter technology.
KEY FEATURES
Multi-functional; HF TIG, Lift ARC/TIG, and MMA/ARC
Designed with the latest IGBT inverter technology platform
Lightweight and compact design for high portability
Low current output ideal for welding thin material Full Specification
The SIP HG1801HF DC TIG/ARC Inverter Welder is a professional-grade dual-purpose inverter designed to deliver high performance in HF TIG, Lift ARC/TIG and MMA/ARC welding applications utilising the latest IGBT inverter technology. Ø 1.6mm to Ø 3.2mm electrode diameter
DC TIG/ARC output current and high duty cycles
Designed with the latest IGBT inverter technology platform
Multi-functional; HF TIG, Lift ARC & TIG, and MMA/ARC processes
Lightweight and compact design for easy portability in all applications
Low current output which is ideal for welding thinner materials
SIP 2-Year Standard Silver Warranty Technical Information
ITEM NO. 05775
Input Supply: 230v (16A)
Output Current: 10A – 160A (TIG)
10A – 140A (ARC)
Output Voltage: 10.4v – 16.4v (TIG)
20.4v – 25.6v (ARC)
Duty Cycle: 160A @ 60% (TIG)
140A @ 60% (ARC)
Electrode Diameter: Ø 1.6mm – 3.2mm
Protection Level: IP21S
Insulation Class: Class H
Net Weight: 14.50kg
Gross Weight: 17.00kg
Product Dimensions:
Packaged DImensions: 480(H) x 480(W) x 240mm(D)
