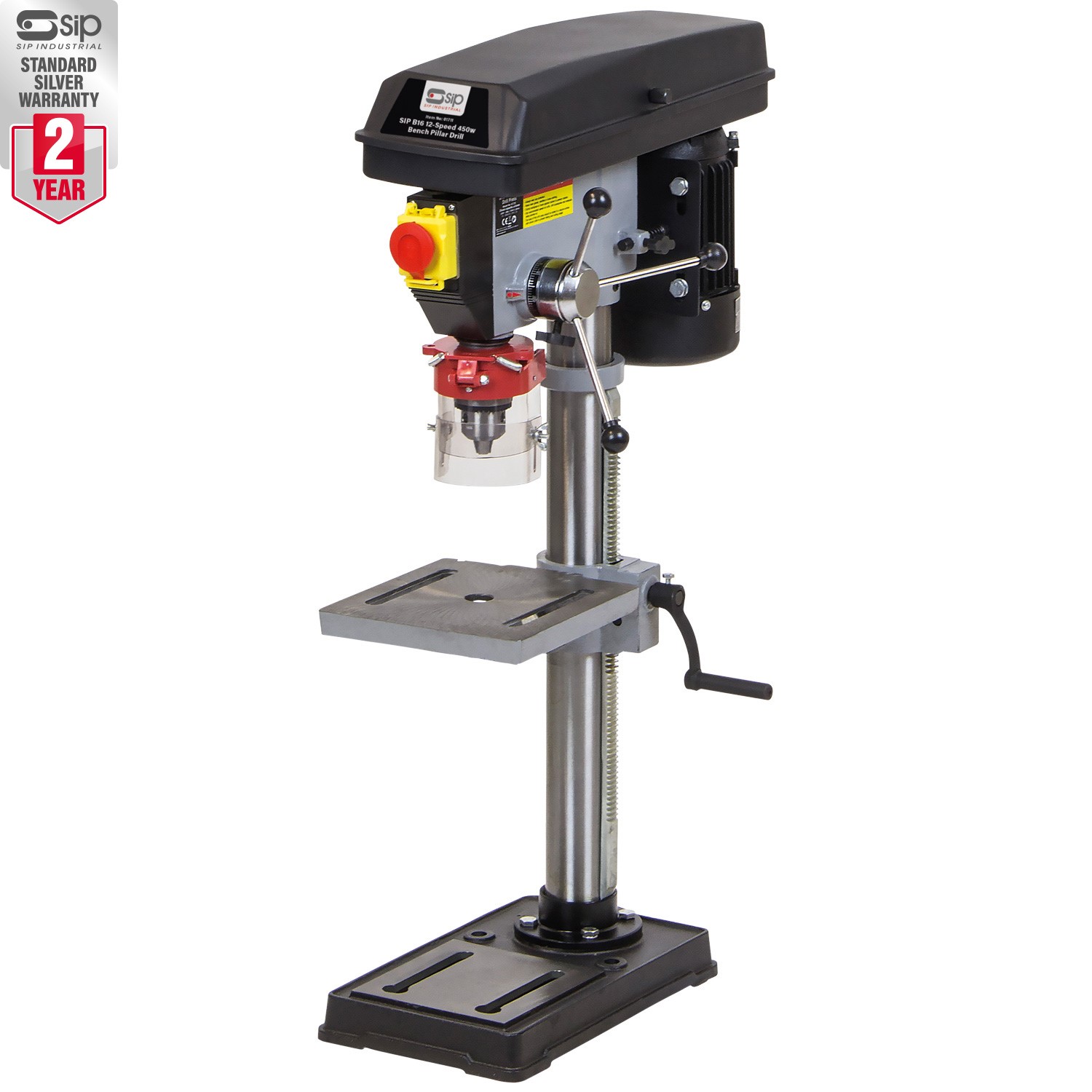

SIP 01711 B16 12-Speed 450w Bench Pillar Drill

The SIP B16 12-Speed 450w Bench Pillar Drill makes light work of preparing and finishing workpiece materials including ferrous and non-ferrous metals, woods and plastics. Using an adjustable tilting table, the drill can be easily positioned to enable accurate drilling.

KEY FEATURES

• 12 spindle speeds powered by a 450w motor from a 230v (13A) supply
• Supports a variety of drilling applications
• High-power brushless induction motor
• Fitted with drilling depth stop
• Adjustable drill table for greater accuracy
• Safety interlock switch for safe motor belt adjustment
• Supports a variety of drilling applications
  Compatible with materials including ferrous and non-ferrous metals, hard and soft woods and high-density plastics.Multi-speed functionality
  Allows precise control of hole sizes across the drilling spectrum.High-power brushless induction motor
  Delivers powerful performance for consistent high-quality drilling.Intuitive features for ease-of-use
  Adjustable drilling table and three-lever handle ensures smooth drilling force.

  Fitted with drilling depth stop
  Accurately maintains a quality of repetitive or blind hole drilling, helping to minimise material wastage.

  Safety interlock switch
  Allows the user to adjust the motor belt with confidence knowing the drill cannot start-up accidentally.

  Technical Information:

  ITEM NO.	01711
  Input Voltage:	230v (13A)
  Motor Power:	450w
  No. of Speeds:	12 speeds
  Speed Range:	300rpm – 2550rpm
  Drill Bit Size:	3mm – 16mm
  Spindle Taper:	B16
  Table Size:	195mm x 200mm
  Base Size:	340mm x 205mm
  Column Diameter:	Ø 58mm
  Swing:	260mm
  Height:	840mm
  Spindle Travel:	60mm
  Collar Diameter:	Ø 58mm
  Max. Distance:	350mm (chuck to table) 470mm (chuck to base)
  Net Weight:	28.00kg
  Gross Weight:	29.60kg
  Product Dimensions:	840(H) x 200(W) x 340mm(D)
  Packaged Dimensions:	260(H) x 665(W) x 410mm(D)
