Full Specification

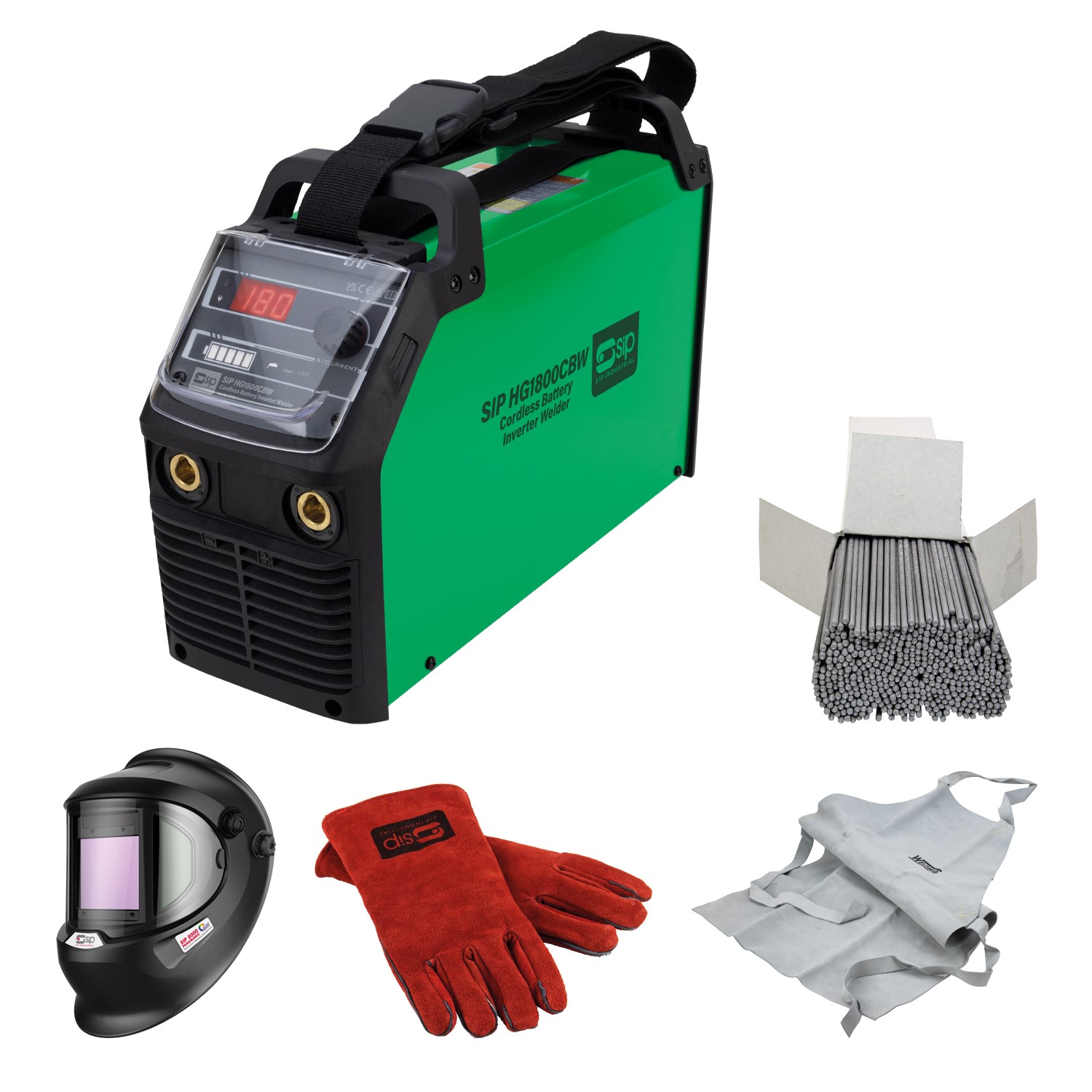

No power? No problem! The SIP HG1800CBW Battery-Powered Inverter Welder provides 180A of powerful and portable welding current in a lightweight and compact design weighing just 11.6kg, utilising the latest inverter technologies to give you high-quality ARC/MMA and TIG welding from a single charge.
Perfect for welding in remote locations, construction sites, and wherever no mains electricity supply is available.
Supplied with 3mtr 25mm2Â electrode lead, Earth lead, and over-shoulder carry strap.
This package is complete with 02803 Panoramic Headshield, 02778 3.25mm 5kg Electrodes, 04146 Deluxe Welding Gauntlets and 04151 Welding Apron.
- 3 Welding Modes:Â MMA (ARC), MMA (ARC) with VRD, and Lift-TIG
- Digital Display:Â easy-to-read battery power monitor and indicator
- Inverter Technology:Â latest technology with integrated Lithium-Ion battery pack
- Quality Welding:Â produces high-quality ARC and TIG welds from one charge
- High Durability:Â manufactured with heavy-duty casing and visor
- Compact Design:Â lightweight for simple portability in demanding applications
- Autonomous Welding:Â welds 20 x 2.5mm, 14 x 3.2mm, and 6 x 4mm rods
- Fast Charging:Â fully recharges in as little as 1.5hrs
- SIP 2-Year Standard Silver Warranty
Technical Information
| ITEM NO. |
05712 |
| Battery Type: |
Lithium-Ion*
*Ensure a discharge/recharge cycle is performed every 3 months. Always keep welder battery above 50% charge when not in use. |
| Battery Capacity: |
740Wh |
| Charger Voltage: |
230v AC +/- 10% |
| Charging Time: |
1.5hrs |
| Battery Output Voltage: |
74v |
| Charging Current: |
8A |
| Welding Current Range: |
10A – 180A (MMA) / 10A – 150A (TIG) |
| Duty Cycle: |
180A @ 10% / 130A @ 20% / 60A @ 100% |
| Net Weight: |
11.60kg |
| Gross Weight: |
13.00kg |
| Product Dimensions: |
280(H) x 150(W) x 440mm(D) |
| Packaged Dimensions |
450(H) x 280(W) x 550mm(D) |
| Welding Rod / Ø Electrode: |
2.5mm x 300mm |
3.2mm x 350mm |
4mm x 450mm |
| Welding Capability (on full charge): |
20 rods @ 85A |
14 rods @ 115A |
6 rods @ 160A |
| ITEM NO. |
02803 |
| Screen Type: |
True Colour HD LCD |
| Filter Size: |
133mm x 144mm |
| Viewing Area: |
100mm x 83mm |
| Grinding Shade: |
4 DIN |
| Plasma Shade: |
Variable 5 – 9 DIN |
| Welding Shade: |
Variable 9 – 13 DIN |
| Side Lens Shade: |
5 DIN |
| Arc Sensors: |
4 sensors |
| Battery Type: |
Lithium CR2450 |
| Light-to-Dark Response: |
1/10,000sec |
| Net Weight: |
0.65kg |
| Gross Weight: |
1.00kg |
| Product Dimensions: |
290(H) x 270(W) x 330mm(D) |
| Packaged Dimensions: |
260(H) x 290(W) x 260mm(D) |
| ITEM NO. |
02778 |
| Electrode Size: |
5kg x 3.25mm |
| Electrode Material: |
Mild Steel |
| Electrode Type: |
6013 |
| Net Weight: |
|
| Gross Weight: |
|
| Product Dimensions: |
|
| Packaged Dimensions: |
51(H) x 76(W) x 355mm(D) |
| ITEM NO. |
04146 |
| Gauntlet Size: |
Size 10 |
| Gauntlet Material: |
Suede Leather |
| Net Weight: |
0.38 |
| Gross Weight: |
0.90kg |
| Product Dimensions: |
|
| Packaged Dimensions: |
440(H) x 250(W) x 40mm(D) |
| ITEM NO. |
04151 |
| Apron Size: |
24″ x 36″ |
| Apron Material: |
Leather |
| Net Weight: |
0.45kg |
| Gross Weight: |
0.46kg |
| Product Dimensions: |
|
| Packaged Dimensions: |
400(H) x 250(W) x 10mm(D) |
