Full Specification
The SIP WELDMATE® 100A MIG Welder is a single process gasless MIG welder ideal for entry level users and small workshop applications.
Supplied with all accessories needed to weld straight from the box, this gasless welder also operates from a 13A supply.
Fully compliant with Reg EU 2019/1784 (Eco Design for Welding Equipment), this welder features a 4th generation inverter which is above 80% energy efficient. This means it uses less power at the same output as older inverters, helping to lower operating costs.
Applications & uses: Perfect for entry level users and small workshop applications. Suitable for gasless MIG welding. Ideal for mild steels.
Gasless MIG process for versatile and convenient welding
Duty cycle @ 40°C; 100A @ 15%.
Durable wire feeder ensures smooth and consistent flow of wire to MIG torch
This easy-to-use device includes tension adjustment to maintain optimal performance.
Compatible with 0.7kg welding wire spools.
Infinitely variable dial for greater control of welder output
Offers a smoother stepless output adjustment for higher quality welding.
Metal casing with heavy-duty carry handle for long life use
High-quality finish is resistant to work area damage and aids mobility.
Compact and portable design for mobility around the work area
The compact unit is easy to move between locations using the fitted carry handle.
Accessories included

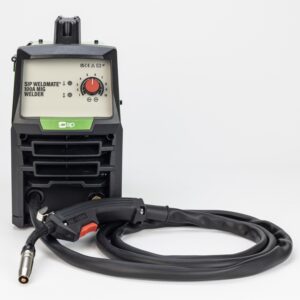

Supplied with integrated 2mtr MIG torch, earth lead, 0.7kg flux-cored wire reel, contact tips, chipping hammer/brush and face shield.
Compatible with SIP Welding Cart for added mobility
Compatible with the 05714 SIP 3-Tier Welding Cart.
**2 Year Warranty**
Technical Information
| ITEM NO. | 05729 |
| Input Supply: | 230v (13A) |
| Output Voltage: | 15v – 19v |
| Output Current: | 20A – 100A |
| Duty Cycle @ 40°C: | 100A @ 15% |
| Wire Diameter: | ⌀ 0.8mm – 0.9mm |
| Wire Spool Size: | 0.7kg (flux-cored) |
| Welding Material Thickness: | 0.8mm – 4.2mm |
| Protection / Insulation | 21S / H |
| Net Weight: | 5.40kg |
| Gross Weight: | 7.70kg |
| Product Dimensions: | 310(H) x 170(W) x 330mm(D) |
| Packaged Dimensions: | 380(H) x 280(W) x 385mm(D) |
