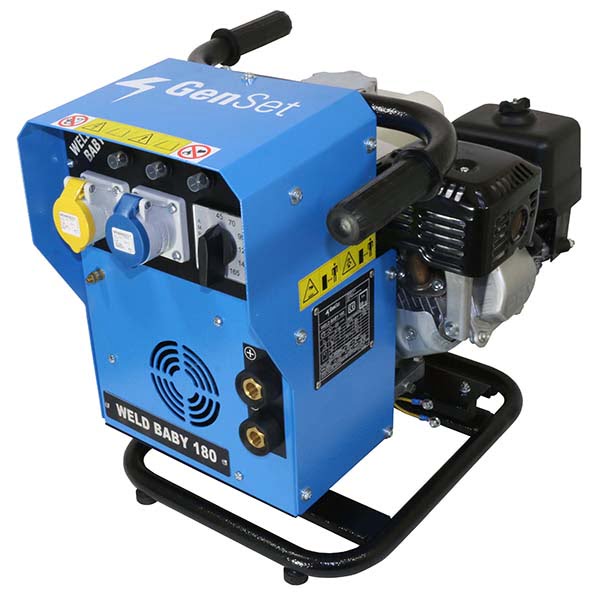

WELD BABY 180 – Welder Generator Honda Petrol Engine

The GenSet Weld Baby 180 is a lightweight and portable petrol welder generator that is capable of 165 amps of DC welding current output. It boasts a 60% duty cycle at maximum output, a lightweight yet robust build (33KG overall) & a smooth DC output with excellent arc striking capabilities.
FEATURES:
165A welding process SMAW (stick) duty cycle (60% duty cycle @ 165A)
Lightweight – weighs 35kg
Welds up 4mm welding rods
Smooth DC output with excellent arc strike
Choice of two arc characteristics for cellulosic or low hydrogen welding rods
1 x 110V / 16A + 1 x 240V / 16A power DC outlets
Low oil cut out
Automatic idle device when no load connected

FIELDS OF APPLICATION:
Railway Maintenance
Regular Maintenance Work

Technical Specifications:
Noise level: 98 LWA
Current range: 40A – 165A DC
Open circuit voltage: 70V
Auxillary power: 1.0kVA 230V / 0.5kVA 110V
Engine: Honda GX 200 Stage V 5.1Hp
Starting system: Recoil
Cooling system: Air
Fuel tank capacity: 3.1L
Fuel consumption at 75% output: 1.8L per hour
Insulation class: H
Mechanical protection: IP23
Dimensions: 510MM x 440MM x 460MM
Weight (Dry): 35KG
